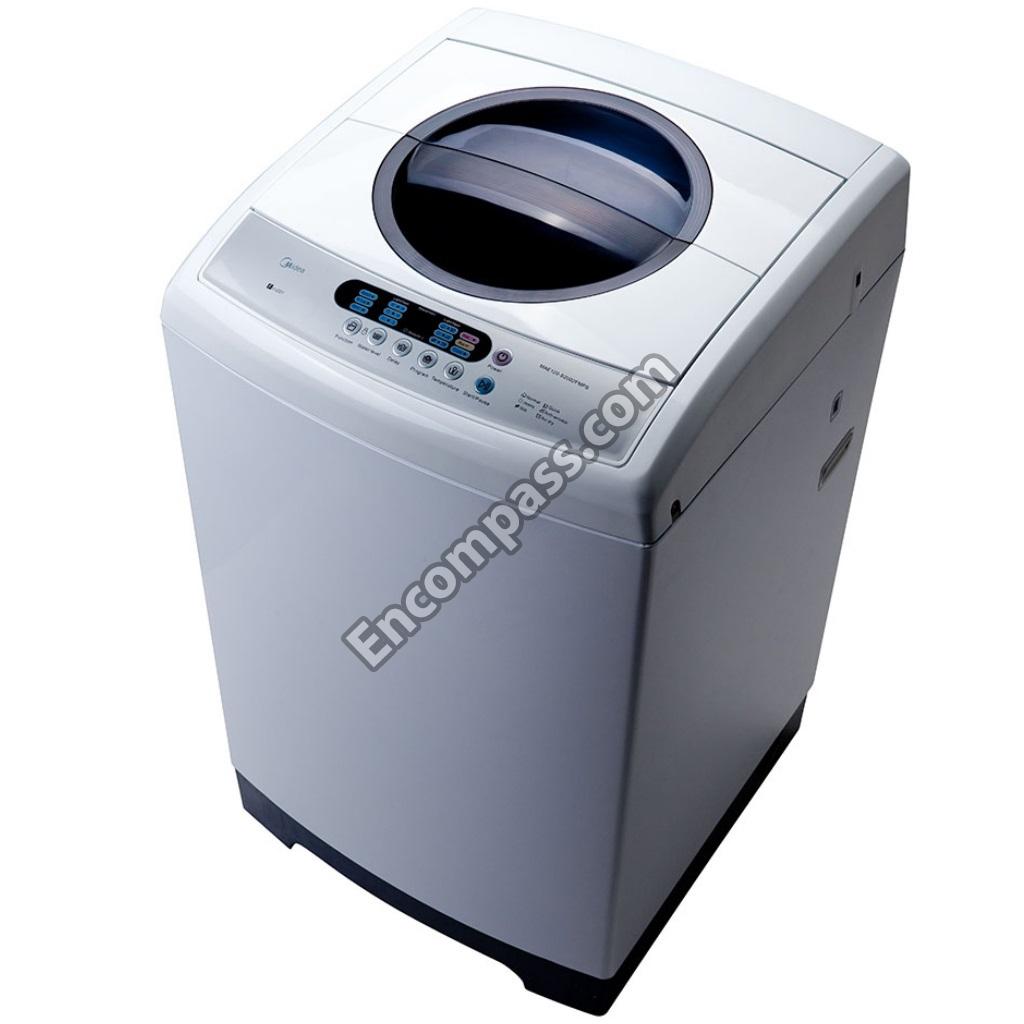

MAE70502PSS Midea Fully Automatic Washing Machine Replacement Parts
Manufacturer
Model Number
MAE70502PSS
Description
Fully Automatic Washing Machine
Parts List
| Category | Part Number | Description | Demand | Availability |
|---|---|---|---|---|
| Leg, Foot, Caster | 12138000007065 | Midea Adjustable Foot Schematic Location: 1.10.2 | Y | In Stock In stock 6.95 |
| 12138000A02534 | Midea Back Control Panel Schematic Location: 3.5 | No 45.00 | ||
| Cover,Cap | 12138000002800 | Midea Back Cover Plate Schematic Location: 1.11 | No 6.95 | |
| Ring | 12138000039641 | Midea Balance Ring Assembly Schematic Location: 2.1 | No 22.95 | |
| Bracket, Flange, Blade | 12238000000477 | Midea Bracket Schematic Location: 4.8 | No 10.95 | |
| Base | 12138000032021 | Midea Cabinet Base Assembly Schematic Location: 1.10 | No 28.95 | |
| Cabinet | 12238000A00961 | Midea Cabinet Subassembly Schematic Location: 1.16 | No 63.95 | |
| Clutch | 12938000000340 | Midea Clutch Body Subassembly Schematic Location: 4.12 | No | |
| Belt, Pulley | 12638000000109 | Midea Cone Belt Schematic Location: 4.17 | Y | Ships in 68 days 6.95 |
| 12138000003366 | Midea Control Panel Schematic Location: 3.16 | No | ||
| 16038000A29603 | Midea Control Panel Sticker Schematic Location: 3.17 | No 45.00 | ||
| Pedestal | 11302702000005 | Midea Cotter Schematic Location: 4.6 | In Stock In stock 5.95 | |
| Cover,Cap | 12138000A16781 | Midea Cover Assembly Schematic Location: 3.1 | No 45.00 | |
| Pedestal | 12138000008131 | Midea Cover Pin Schematic Location: 3.2 | Y | In Stock In stock 6.95 |
| Switch | 17438000000360 | Midea Cover Switch Schematic Location: 3.6 | Y | In Stock In stock 6.95 |
| Screw | 11301225000004 | Midea Cross Groove Six Angle Head Flange Screw Schematic Location: 4.9 | No 6.95 | |
| 12138000002848 | Midea Drain Valve Subassembly Schematic Location: 4.4 | Y | In Stock In stock 6.95 | |
| Wire | 17401108000495 | Midea Earth Wire Subassembly Schematic Location: 4.2 | No 45.00 | |
| Cover,Cap | 12138000034306 | Midea Filtering Cover Assembly Schematic Location: 2.2 | No 6.95 | |
| Washer | 11300414000007 | Midea Flat Washer Schematic Location: 1.6 | In Stock In stock 6.95 | |
| Handle | 12138000A15737 | Midea Handle Schematic Location: 1.15 | No 6.95 | |
| Suspension & Shock Absorption | 12138000003595 | Midea Hanger Foot Schematic Location: 1.2 | No | |
| Nut | 11301512000037 | Midea Hex Nut Schematic Location: 4.1 | No 5.95 | |
| Cover,Cap | 12138000001385 | Midea Hole Cover Schematic Location: 1.20 | Y | In Stock In stock 6.95 |
| 12138000003517 | Midea Impeller Schematic Location: 1.5 | Y | In Stock In stock 12.95 | |
| Screw | 11301017000001 | Midea Impeller Screw Schematic Location: 1.3 | Y | In Stock In stock 6.95 |
| Screw | 11300904000001 | Midea Inner Six Angle Flat Round Head Screw And Washer Assembly Schematic Location: 4.7 | No 6.95 | |
| Cushion | 12138000002867 | Midea Insulation Pad For Motor Schematic Location: 4.13 | No 6.95 | |
| Wire | 17438000000713 | Midea Internal Wire Assembly Schematic Location: 3.13 | No 22.95 | |
| Coupling | 12238000000271 | Midea Land Schematic Location: 2.4 | No 14.95 | |
| Washer | 11300412000002 | Midea Lock Washer Schematic Location: 1.4 | No 5.95 | |
| 12638000000764 | Midea Middle Hose Assembly Schematic Location: 1.9 | Y | In Stock In stock 6.95 | |
| Drain Plug | 12138000001551 | Midea Midea Part 12138000001551 Schematic Location: 4.11.1 | Y | In Stock In stock 6.95 |
| Clip | 12900101000807 | Midea Midea Part 12900101000807 Schematic Location: 1.13 | In Stock In stock 5.95 | |
| Pump, Motor | P0000000270453 | Midea Motor Pulley Schematic Location: 4.16.2 | No 45.00 | |
| Pump, Motor | 12338000000044 | Midea Motor Pulley Assembly Schematic Location: 4.16 | No 10.95 | |
| Nozzle | 12138000027306 | Midea Nozzle Assembly Schematic Location: 3.10 | No 45.00 | |
| Cover,Cap | 12138000004069 | Midea Outer Tub Cover Schematic Location: 1.1 | No 6.95 | |
| Drum, Tub | 12138000010030 | Midea Outer Tub Subordinate Assembly Schematic Location: 4.11 | No | |
| Pipe, Tube, Hose, Fitting | 12138000002887 | Midea Overflow Hose Schematic Location: 4.10 | Y | In Stock In stock 6.95 |
| Circuit Board | 17138000006368 | Midea Pcb Schematic Location: 3.12 | No | |
| Circuit Board | 17138000005794 | Midea Pcb Schematic Location: 3.15 | Y | In Stock In stock 80.95 |
| 11001011000124 | Midea Permanent Magnet Synchronous Pump Schematic Location: 1.19 | Y | In Stock In stock 30.95 | |
| Power Cord | 17438100000586 | Midea Power Cord Schematic Location: 1.18 | Y | In Stock In stock 12.95 |
| Belt, Pulley | 12238000000750 | Midea Pulley Fastening Component Schematic Location: 4.16.1 | No 6.95 | |
| Cover,Cap | 12138000006434 | Midea Rear Cover Schematic Location: 1.14 | No 6.95 | |
| Pump, Motor | 17438000000256 | Midea Retractor Schematic Location: 4.5 | Y | In Stock In stock 18.95 |
| Cover,Cap | 12138000001505 | Midea Screw Cover Schematic Location: 3.14 | No 6.95 | |
| Pump, Motor | 11002012001093 | Midea Single Phase Asynchronous Motor Schematic Location: 4.14 | Y | In Stock In stock 88.95 |
| 11301002000022 | Midea Six Angle Head Bolts And Washer Combinations Schematic Location: 4.15 | No 45.00 | ||
| Drum, Tub | 12238000003547 | Midea Spin Tub Subassembly Schematic Location: 2 | No | |
| Drum, Tub | 12238000006223 | Midea Stainless Tub Assembly Schematic Location: 2.3 | No 45.00 | |
| Leg, Foot, Caster | 12638000000053 | Midea Stationary Foot Schematic Location: 1.10.1 | In Stock In stock 6.95 | |
| Suspension & Shock Absorption | 12938000000173 | Midea Suspend System Schematic Location: 1.7 | Y | Ships in 68 days 19.95 |
| Cover,Cap | 12138000A15731 | Midea Top Cover Assembly Schematic Location: 3.11 | No 45.00 | |
| Spring | 12900101000291 | Midea Twist Spring Schematic Location: 3.3 | Y | No |
| Pipe, Tube, Hose, Fitting | 12138000009812 | Midea Up Drain Hose Assembly Schematic Location: 1.8 | Y | In Stock In stock 6.95 |
| Converter | 12038000A00222 | Midea Water Inlet Hose Assembly Schematic Location: 1.12 | No | |
| Pipe, Tube, Hose, Fitting | 12038000A00221 | Midea Water Inlet Hose Assembly Schematic Location: 1.12 | Y | No 51.95 |
| Inlet | 17438000005102 | Midea Water Inlet Valve Schematic Location: 3.7 | Y | In Stock In stock 19.95 |
| Cover,Cap | 12238000003982 | Midea Water Inlet Valve Cover Assembly Schematic Location: 3.4 | Y | No 6.95 |
| Sensor, Thermistor, Thermostat | 17438000001372 | Midea Water Level Sensor Module Schematic Location: 3.9 | Y | In Stock In stock 8.95 |
