PWA2410N Midea 24,000 Btu Window Air Conditioner Replacement Parts
Manufacturer
Model Number
PWA2410N
Description

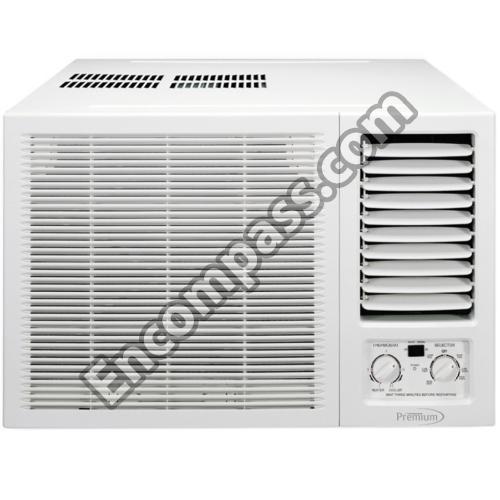

24,000 Btu Window Air Conditioner
Interactive Exploded View
Parts List
| Category | Part Number | Description | Demand | Availability |
|---|---|---|---|---|
| Filter | 12100204000556 | Midea Air Filter Schematic Location: 1.2 | No 6.95 | |
| 12100105000221 | Midea Axial Flow Fan Schematic Location: 16 | No 30.95 | ||
| Cabinet | 12220300000137 | Midea Cabinet Subassembly Schematic Location: 14 | No 84.95 | |
| 15120300001562 | Midea Capillary Assembly Schematic Location: 28 | No 14.95 | ||
| 12100103000384 | Midea Centrifuge Fan Schematic Location: 21 | No 22.95 | ||
| 12220300000171 | Midea Chassis Assembly Schematic Location: 10 | No 52.95 | ||
| Condensor | 15820300000541 | Midea Condenser Assembly Schematic Location: 30 | No 189.95 | |
| Cover,Cap | 12120300A00398 | Midea Control Board Cover Schematic Location: 6 | No 6.95 | |
| Cover,Cap | 12220300002158 | Midea Cover Of Electronic Control Box Schematic Location: 38 | No 6.95 | |
| Cover,Cap | 12220300000299 | Midea Cover Of Electronic Control Box Schematic Location: 9 | No 6.95 | |
| Cover,Cap | 12220300000258 | Midea Cover Subassembly Schematic Location: 31 | No 38.95 | |
| Pipe, Tube, Hose, Fitting | 15120300000977 | Midea Discharge Pipe Assembly Schematic Location: 29 | No 25.95 | |
| Pipe, Tube, Hose, Fitting | 12100501000033 | Midea Drain Hose Schematic Location: 39.1 | No 6.95 | |
| Control | 12220300000273 | Midea Electronic Control Box Schematic Location: 8.1 | No 11.95 | |
| Control | 17220300001176 | Midea Electronic Control Box Component Assembly Schematic Location: 8 | No 64.95 | |
| Evaporator | 15820300000210 | Midea Evaporator Assembly Schematic Location: 24 | No 45.00 | |
| Compressor - Sealed System | 11103010003789 | Midea Fixed Speed Rotary Compressor Schematic Location: 26 | Y | In Stock In stock 301.95 |
| Outlet | 12820300000022 | Midea Foam, Air Outlet Schematic Location: 1.5 | No 6.95 | |
| Door,Remote Control Door | 12120300000014 | Midea Fresh Air Door Subassembly Schematic Location: 7 | No 6.95 | |
| Board | 12220300001601 | Midea Front Separating Board Subassembly Schematic Location: 19 | No 44.95 | |
| Louver | 12120300000464 | Midea Horizontal Louver Schematic Location: 11 | No 6.95 | |
| 12020300000010 | Midea Installation Accessory Schematic Location: 39 | No 6.95 | ||
| Knob, Dial, Button | 12100403000054 | Midea Knob Schematic Location: 2 | No 6.95 | |
| Switch | 17400517000005 | Midea Master Rotary Switch Schematic Location: 8.5 | No 13.95 | |
| 12120300A01089 | Midea N/a Schematic Location: 1 | No 45.00 | ||
| Panel | 12120300000038 | Midea Panel Schematic Location: 1.1 | No 25.95 | |
| Panel | 12120300000264 | Midea Panel Frame Subassembly Schematic Location: 1.3 | No 29.95 | |
| Power Cord | 17401202000300 | Midea Power Cord Subassembly Schematic Location: 8.7 | No 25.95 | |
| 12120300002324 | Midea Rear Separating Schematic Location: 15 | No 68.95 | ||
| Switch | 17400503000001 | Midea Rocker Switch Schematic Location: 36 | No 6.95 | |
| Rubber | 12600801000019 | Midea Rubber Plug Schematic Location: 13 | No 6.95 | |
| Motor,Ice Maker Motor | 11002012017387 | Midea Single Phase Asynchronous Motor Schematic Location: 17 | No 95.95 | |
| Spring | 12220300000946 | Midea Spring For Knob Schematic Location: 3 | No 6.95 | |
| Pipe, Tube, Hose, Fitting | 15120300001302 | Midea Suction Pipe Assembly Schematic Location: 27 | No 57.95 | |
| Motor,Ice Maker Motor | 12220300000348 | Midea Supporter Of Fan Motor Schematic Location: 18 | No 25.95 | |
| Motor,Ice Maker Motor | 11002014000084 | Midea Synchronous Motor Schematic Location: 22.2 | No 20.95 | |
| Controller | 17400513000002 | Midea Temperature Controller Schematic Location: 8.4 | No 15.95 | |
| Terminal | 17400401000051 | Midea Terminal Schematic Location: 8.13 | No 6.95 | |
| Ring | 12120300002205 | Midea Ventilation Ring Schematic Location: 23 | No 6.95 | |
| 12820300000219 | Midea Volute Shell Schematic Location: 20 | No 19.95 | ||
| 12120300002204 | Midea Volute Shell (Below) Subassembly Schematic Location: 22 | No 55.95 |
